    Height Map scaling

    Duet Web Control wishlist
    2
    3
    236
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • too
      too last edited by

      Hello people,

      normally on a FFF machine, a 0.25mm difference on the build plate is definitely noticeable, so it makes for a good minimum and maximum of the scale in the heightmap window.

      However, I am using the duet to control very very large machines that will map out areas with significantly more differences in height.

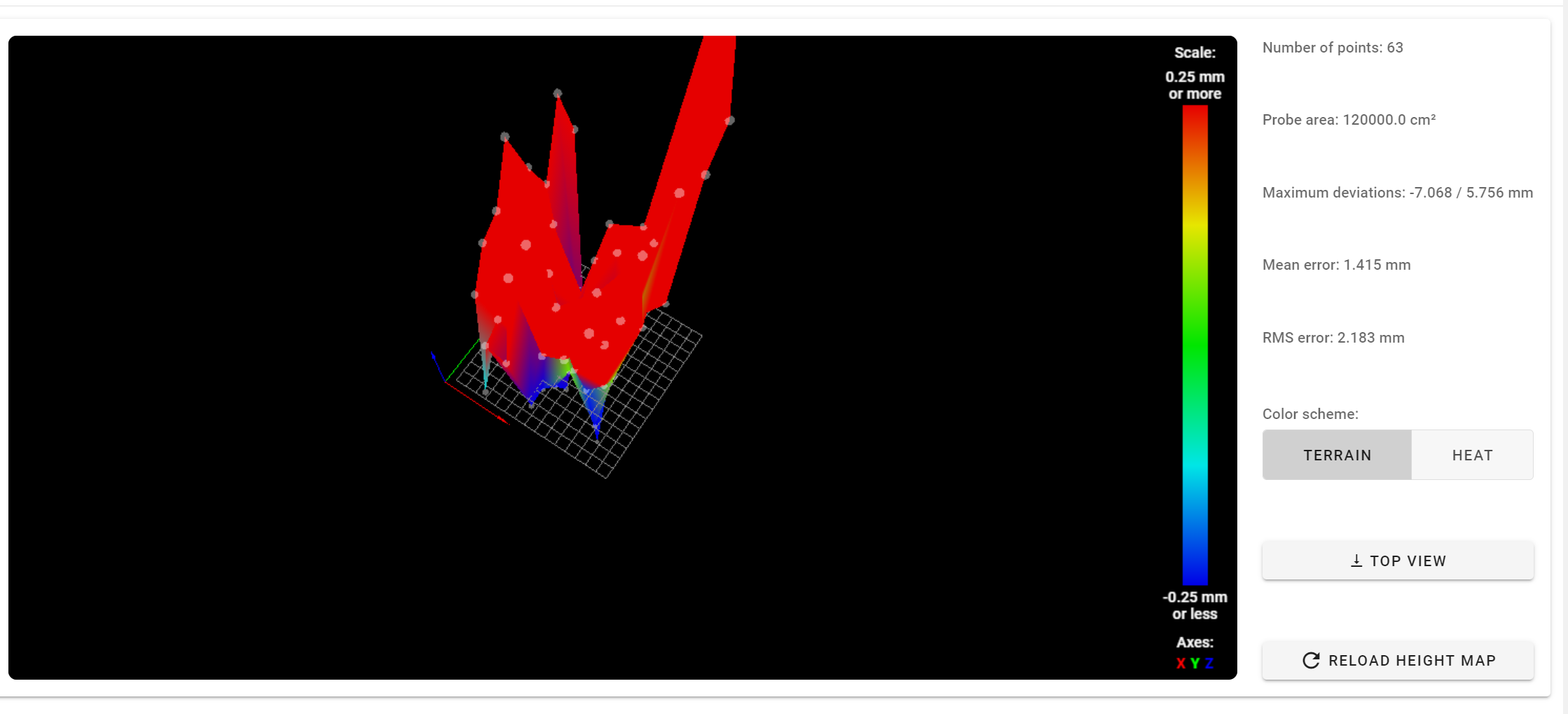

      When I am trying to look at the heightmap, it is very much distorted:


      The attached picture is a heightmap of a small area, 3m x 4m. Once there are more points and the area increases, the entire thing gets even crazier.

      What I am suggesting is a configurable scale for the heightmap, changeable somewhere in the settings

      Cartesian Duet3+Raspberry pi 4 with 5x 1XD using servo drives printing mortars and concrete

      droftarts 1 Reply Last reply Reply Quote 3
      • droftarts
        droftarts administrators @too last edited by

        @too Until @chrishamm gets to this, there's this visualiser that works well: http://lokspace.eu/3d-printer-auto-bed-leveling-mesh-visualizer/

        Ian

        Cartesian bed-slinger with Duet 3 Mini 5+ WiFi : RRP Fisher Delta v1 with Duet 2 Maestro : TronXY X5S with Duet 2 Wifi (in progress)

        too 1 Reply Last reply Reply Quote 1
        • too
          too @droftarts last edited by

          @droftarts thanks for the tip!

          Cartesian Duet3+Raspberry pi 4 with 5x 1XD using servo drives printing mortars and concrete

          1 Reply Last reply Reply Quote 0
          • First post
            Last post
