    [not yet solved] Tevo Little Monster DuetWifi errors

    Scheduled Pinned Locked Moved
    My Duet controlled machine
    10
    140
    21.7k
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • giostarkundefined
      giostark
      last edited by

      @giostark said in [help] Tevo Little Monster + DuetWiFi + DuetTouch7" errors:

      Hi ,

      Can you tell me if is right this procedure?
      I have followed the procedure for calibrate the bed.g
      new sensor BLTouch smart V2 original:
      For each point I have done those passage
      1)G31 Z0 ; clear the previous Z
      2)Lift the nozzle close the bed . Then Z-5 to touch the bed, then rise of 5 and start lowering 0.5 to touch the bed again, then rise of 0.5 and start lowering again of 0.005 to touch the bed again. Those steps for 3 time for each point. I had to do this because on delta printer I noticed that the nozzle tend to shift if pressed to much with big steps of lowering. So tried to be the more accurate I could be.
      2)G92 Z0 ; set the zero Z
      3)G1 Z5 ; rise of 5mm
      4)M280 P3 S10 I1 ; release the trigger
      5)G30 S-1
      6)copy the result for 3 times and take the medium.
      7)take the center Z height and subtract each number for each point.

      I selected the right number with the ">" , the one of the 3 pass done that is the medium
      ; 7 points, 6 factors, probing radius: 150, probe offset (0, 0)
      G30 P0 X0.00 Y150.00 Z-99999 H-0.124 ; trigger height 1.194 - 1.238 - >1.194> done
      G30 P1 X129.90 Y75.00 Z-99999 H-0.430 ; trigger height 1.501 - >1.507 - 1.513 > done
      G30 P2 X129.90 Y-75.00 Z-99999 H-0.265 ; trigger height 1.355 - 1.392 - >1.355 > done
      G30 P3 X0.00 Y-150.00 Z-99999 H0.023 ; trigger height 1.047 - >1.047 - 1.053 > done
      G30 P4 X-129.90 Y-75.00 Z-99999 H0.316 ; trigger height 0.754 - >0.754 - 0.773 > done
      G30 P5 X-129.90 Y75.00 Z-99999 H0.370 ; trigger height 0.718 - 0.693 - >0.700 > done
      G30 P6 X0 Y0 Z-99999 S7 ; trigger height 1.077 - 1.064 - >1.070 done

      first pass:

      Calibrated 7 factors using 7 points, deviation before 1.596 after 0.000


      second pass :

      Calibrated 7 factors using 7 points, deviation before 0.146 after 0.000


      1 Reply Last reply Reply Quote 0
      • giostarkundefined
        giostark
        last edited by

        After I changed the M665 with new data:
        M665
        Diagonal 408.220, delta radius 159.047, homed height 524.265, bed radius 175.0, X 0.640°, Y 0.720°, Z 0.000°

        First pass:
        Calibrated 7 factors using 7 points, deviation before 1.499 after 0.000

        So I would ask why the deviation is so different each time?

        T3P3Tonyundefined 1 Reply Last reply Reply Quote 0
        • giostarkundefined
          giostark
          last edited by

          The F******* problem is still the same.... 👿 Im going mad....

          1 Reply Last reply Reply Quote 0
          • T3P3Tonyundefined
            T3P3Tony administrators @giostark
            last edited by

            @giostark you do not appear to be running the G32 multiple times. For now ignore the bed mesh compensation (G29) and run G32 a number of time (let's say 5) and report back those results.

            www.duet3d.com

            1 Reply Last reply Reply Quote 0
            • giostarkundefined
              giostark
              last edited by giostark

              There is something else ... I'm working on it. I'm trying different solutions and other software. I let you know...

              1 Reply Last reply Reply Quote 0
              • giostarkundefined
                giostark
                last edited by giostark

                Hi,
                I learned other stuffs and tried to understand better some functionalities ...
                Here what I have done that present the same issue on large print:

                I have generated a new bed.g and calculated the H parameter for each point:

                G30 P0 X0.00 Y140.00 Z-99999 H0.066 ; 1.316 - 1.303 - 1.291 - 1.310 >>> 1.310-1.244=0.066
                G30 P1 X121.24 Y70.00 Z-99999 H0.291 ; 1.512 - 1.537 - 1.549 - 1.543 >>> 1.535-1.244=0.291
                G30 P2 X121.24 Y-70.00 Z-99999 H0.178 ; 1.433 - 1.445 - 1.395 - 1.408 >>> 1.422-1.244=0.178
                G30 P3 X0.00 Y-140.00 Z-99999 H-0.023 ; 1.206 - 1.206 - 1.250 - 1.225 >>> 1.221-1.244=-0.023
                G30 P4 X-121.24 Y-70.00 Z-99999 H-0.244 ; 1.000 - 0.988 -1.006 - 1.006 >>> 1.000-1.244=-0.244
                G30 P5 X-121.24 Y70.00 Z-99999 H-0.296 ; 0.938 - 0.950 - 0.944 - 0.963 >>> 0.948-1.244=-0.296
                G30 P6 X0.00 Y70.00 Z-99999 H0.057 ; 1.306 - 1.293 - 1.281 - 1.324 >>> 1.301-1.244 =0.057
                G30 P7 X60.62 Y-35.00 Z-99999 H0.097 ; 1.331 - 1.350 - 1.356 - 1.328 >>> 1.341-1.244=0.097
                G30 P8 X-60.62 Y-35.00 Z-99999 H-0.143 ; 1.107 - 1.100 - 1.100 - 1.100 >>> 1.101-1.244=-0.143
                G30 P9 X0 Y0 Z-99999 S7 ; 1.227 - 1.252 - 1.246 - 1.252 >>> 1.244
                This is a 5 pass of G32 without a G29 (I have done just a one G29 after the new M665 data inserted in config.g otherwise the nozzle stop 5mm before the bed at any printing)
                Calibrated 7 factors using 10 points, deviation before 0.031 after 0.029 (last of 5)
                Calibrated 7 factors using 10 points, deviation before 0.032 after 0.030
                Calibrated 7 factors using 10 points, deviation before 0.032 after 0.030
                Calibrated 7 factors using 10 points, deviation before 0.031 after 0.030
                Calibrated 7 factors using 10 points, deviation before 1.487 after 0.029 (first of 5)

                Now, The M665 from Eric is different from what the firmware have calculated for my printer. Never mind , I used what the firmware say .
                I tried to recheck the Zprobe and all the point with new M665 data and the Hs are more or less identical. I mean 0.005/0.01 of tolerance .

                When I try to print large object the segment closed between those point are :
                x -80 , y-50
                and
                x-80 , y+20
                are too much pressed on the bed.
                Instead the :
                x120 , y20
                and
                x120 , y-50
                is too lose from the bed.

                So it seems that the printer let stay the print more high where it believe the bed is high and low where the bed is low. BUT the result is that where it believe that is high the print dont stick and where is low the print can barely extrude. So the bed is not slope as it believe.
                Can be the S7 parameter in the bed.g the problem?
                The H parameter should correct all this but they didnt seems to be adopted during the print ....

                Suggestions?

                dc42undefined 1 Reply Last reply Reply Quote 0
                • dc42undefined
                  dc42 administrators @giostark
                  last edited by

                  @giostark said in [help] Tevo Little Monster + DuetWiFi + DuetTouch7" errors:

                  I have generated a new bed.g and calculated the H parameter for each point:

                  Did you establish the correct H parameters by measuring the trigger height at each point?

                  If you need to use H parameters to compensate for effector tilt, then you cannot also use G29 mesh bed compensation; because G29 has no facility for making trigger height corrections. But judging from your height maps, you won't need to use mesh bed correction.

                  Duet WiFi hardware designer and firmware engineer
                  Please do not ask me for Duet support via PM or email, use the forum
                  http://www.escher3d.com, https://miscsolutions.wordpress.com

                  1 Reply Last reply Reply Quote 0
                  • giostarkundefined
                    giostark
                    last edited by giostark

                    Hi dc42 ,
                    yep , as the G30s show up, then I have done the average and then subtracted the center probed.. For each point 4x (nozzle touching the glass bed) G92 Z0 + G1 Z5 + M280 P3 S10 I1 + G30 S-1

                    Azz... I didnt know that.
                    So Now should be fine launch a M561(clear the actual bed compensation) and then a G29 S2 (disable the bed compensation) ?
                    I should put this command at the start of the bed.g?

                    edit:
                    im trying to do that ..

                    1 Reply Last reply Reply Quote 0
                    • dc42undefined
                      dc42 administrators
                      last edited by

                      Just avoid running G29 or G29 S1 so that you never load a height map. But if you do load one, running M561 or G92 S2 will disable it.

                      Duet WiFi hardware designer and firmware engineer
                      Please do not ask me for Duet support via PM or email, use the forum
                      http://www.escher3d.com, https://miscsolutions.wordpress.com

                      1 Reply Last reply Reply Quote 0
                      • giostarkundefined
                        giostark
                        last edited by giostark

                        It seems that the printer ignoring the H value !
                        I restarted with 6 point for make the things simple . All close to the circumference and the last in the middle.
                        The end stop are "perfect". Belt well tied. (not too much).
                        The point are well calibrated directly from the home
                        G29 disabled and ...
                        Bed compensation in use: none
                        Bed probe heights: 0.083 -0.063 0.133 -0.056 0.079

                        If I run the G32 event 10 times in a raw the result is the same.

                        I suppose that the H value is more or less ignored because if I revert the + and - of the bottom numbers nothing change.
                        Also if i leave all point with H0 stock the printed part look like the same.
                        Rise the Z offset increment the problem.

                        ; bed.g file for RepRapFirmware, generated by Escher3D calculator
                        ; 7 points, 6 factors, probing radius: 150, probe offset (0, 20)
                        G30 P0 X0.00 Y132.35 Z-99999 H-0.069 ; >>> 1.272-1.341=-0.069 >> ok
                        G30 P1 X121.08 Y69.90 Z-99999 H0.135 ; >>> 1.476-1.341=0.135 >> very heigh printing on the bed
                        G30 P2 X129.90 Y-75.00 Z-99999 H0.012 ; >>> 1.353-1.341=0.012 >> heigh
                        G30 P3 X0.00 Y-150.00 Z-99999 H-0.204 ; >>> 1.137-1.341=-0.204 >> ok
                        G30 P4 X-129.90 Y-75.00 Z-99999 H-0.341 ; >>> 0.900-1.341=-0.341 >> low
                        G30 P5 X-121.08 Y69.90 Z-99999 H-0.484 ; >>> 0.857-1.341=-0.484 >> very low printing on the bed
                        G30 P6 X0 Y0 Z-99999 S6 ; 1.341

                        The bottom side is too pressed (and gem on the right when rise a little when release the material compressed before) , the top is too high and dont stick...


                        Any ideas why are ignored that H values? Also if I give a +0.700 or -0.700 to the point that are more high and low , nothing change in the print ... ☹
                        So I have done tons of time those passages for discover that are not recognized 😕

                        1 Reply Last reply Reply Quote 0
                        • dc42undefined
                          dc42 administrators
                          last edited by

                          It's a known issue that the H value is ignored when deployprobe.g and retractprobe.g files are used. Fixed in 2.02RC4 which I am trying to get finished today.

                          Duet WiFi hardware designer and firmware engineer
                          Please do not ask me for Duet support via PM or email, use the forum
                          http://www.escher3d.com, https://miscsolutions.wordpress.com

                          1 Reply Last reply Reply Quote 0
                          • giostarkundefined
                            giostark
                            last edited by giostark

                            Ah 😱
                            Ok so im not dumb 🕵
                            Now I mount the RC3. I'll be the first on the other side the Atlantic Ocean that will try the RC4 😎
                            So my brain can stop fry for some hour 😳

                            1 Reply Last reply Reply Quote 0
                            • giostarkundefined
                              giostark
                              last edited by

                              Damn found it... but just now that you told me. Any way thanks for the patience and the support...

                              @kuhnikuehnast said in Firmware 2.02 Release candidate 3 now available:

                              Interesting thing I found about G30:

                              1. If you use:
                              G30 X20 Y20


                              to probe the bed at a specific point, you always have to calculate the offset of the probe, because the coordinates of the nozzle are used.

                              Whereas if you use 2:

                              G30 P0 X20 Y20 H0 Z-99999


                              the offset of the probe is already calculated and the real probe coordinates are used but not the "actually" coordinates of the nozzle

                              1. The H- parameter is still not taken into account when probing. Therefore, I performed a little test:
                              M561                                                    ; delete any bed transformation
                              G1 X45.457 Y8.602 Z10 F15000				; go to probing point on floating bed
                              G30 X45.457 Y8.602 H0 S-1   				; define this point as Z=0

                              M561                                                    ; delete any bed transformation
                              G1 X45.457 Y8.602 Z10 F15000				; go to probing point on floating bed
                              G30 X45.457 Y8.602 H5 S-1   				; define this point as Z=0

                              M561                                                    ; delete any bed transformation
                              G30 P0 X20 Y20 H0 Z-99999 S-1			        ; probe point P0

                              M561                                                    ; delete any bed transformation
                              G30 P0 X20 Y20 H3 Z-99999 S-1			        ; probe point P0

                              M561                                                    ; delete any bed transformation
                              G30 P1 X20 Y20 H3 Z-99999 S-1			        ; probe point P1


                              This ended up in the results:

                              20:20:45G32 bed probe heights:, mean nan, deviation from mean nan
                              20:20:42G32 bed probe heights: 0.004, mean 0.004, deviation from mean 0.000
                              20:20:39G32 bed probe heights: 0.007, mean 0.007, deviation from mean nan
                              20:20:36Stopped at height 1.399 mm
                              20:20:31M98 P"0:/macros/Test H-Factor"
                              Stopped at height 1.399 mm


                              So as the H-factor differs every probe, the results are all the same... 😕

                              greetings kuhni

                              1 Reply Last reply Reply Quote 0
                              • giostarkundefined
                                giostark
                                last edited by

                                Im still trying...lets see what we reach.
                                In the same time I bought the original Genuine E3D V6 Hot-End
                                https://www.amazon.it/gp/product/B07CN8JP47/ref=od_aui_detailpages00?ie=UTF8&psc=1
                                I was looking the the Pico 3D but on the site is sold out and they never answered to my mail.
                                I'll let you know how the work proceed.

                                1 Reply Last reply Reply Quote 0
                                • giostarkundefined
                                  giostark
                                  last edited by

                                  So...
                                  Some considerations...

                                  1)There is not any difference if I select S6 or S7-S8-S9 in the bed.g, the print result is pretty the same , also if the parameter auto calculated differ a lot.

                                  1. I produced right now several bed.g file and all of them have "H" parameter reconfigured. (12 external point and 3 inside or 6 outside and 6 inside)
                                    BUT there is something strange in the procedure. 😕
                                    The trigger height for each point have a reasonable difference between each other. I calculated the difference and added into the bed.g BUT still the point stay too high or too low.
                                    So the trigger eight is not the only parameter that affect the distance from the bed.
                                    I choose to lock the S parameter in the bed.g at 6 because the automatic calculation fix the rod length at 411+ instead than 397+ as I measured with the ruler. (in the original firmware there is settled 397.1073 that confirm the distance).

                                  >>> Concrete example: I'm gone for this point during a test with (6 out points + 6 inner points)
                                  -Removed any old Z offset.
                                  -G1 X112.41 Y64.90 (nozzle down at G1 Z3 from home position, moved to the XY coordinate and with incremental steps dug to the bed)
                                  Then M280 P3 S160 I1 - G92 Z0 - G1 Z5 - M280 P3 S10 I1 - G30 S-1.
                                  The trigger height is 1.320 . Measured several time . Is consistent, all the attempts are more or less the same.
                                  In the center (x0 y0) the trigger height is 1.100
                                  So 1.320-1.100=0.220 The H parameter is H0.220.
                                  BUT if after the calibration (G32x3) I reach that point I can see that there is still 0.250mm from the bed!!! (used a thickness gauge - and if nozzle down 5 times of 0.05 i can touch the bed so is a real 0.25)
                                  The other points do almost the same despite they are too low or high.
                                  So...

                                  WHY?

                                  I'm missing something?

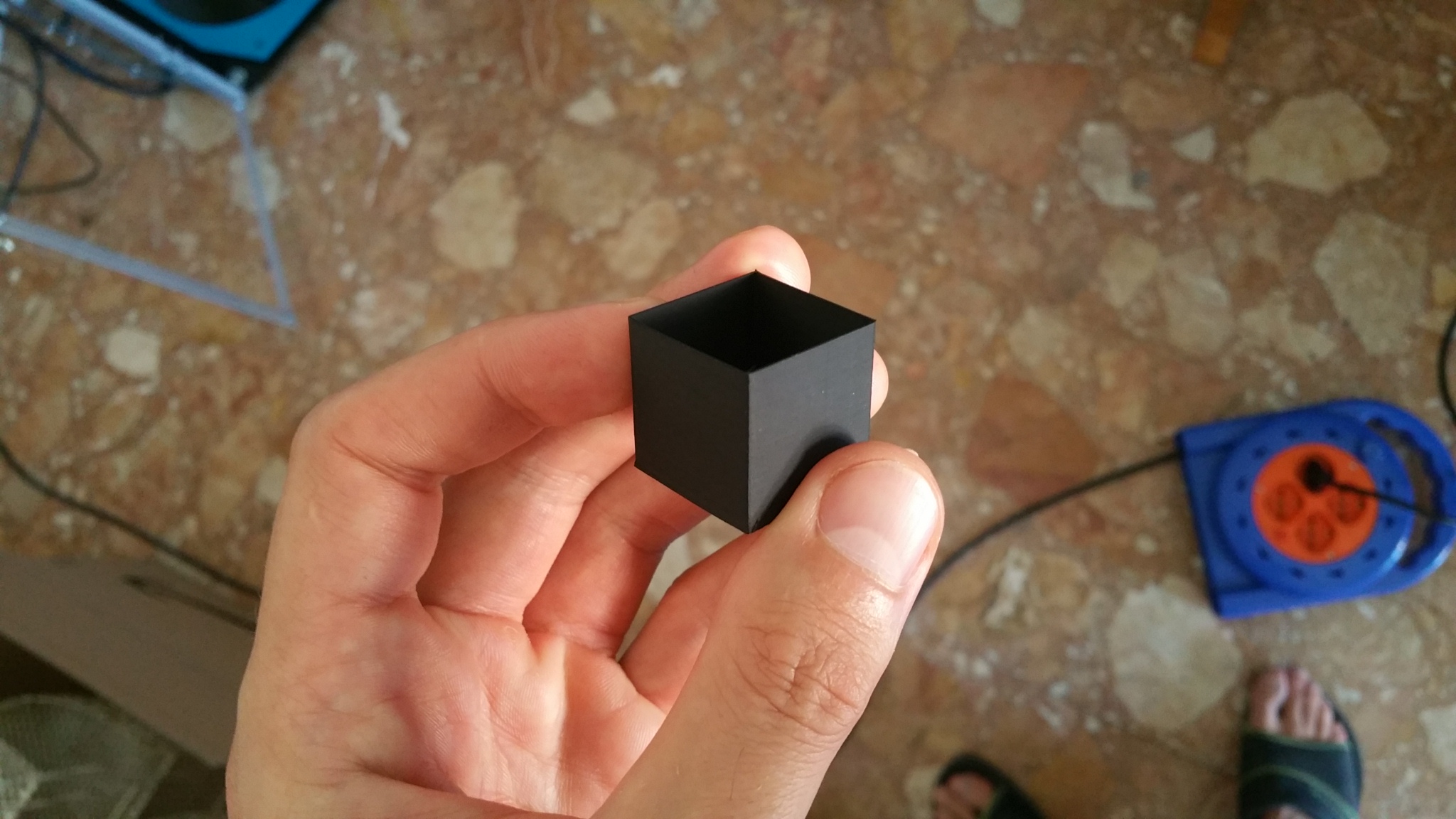

                                  (the endstop are all leveled with digital caliper - The motors are all the same and well wired. I can print a more or less amazing test cube.

                                  Thanks for any suggestion 😉

                                  I understood that the delta printer have those tolerances ..BUT !
                                  If is this the case the trigger procedure as explained dont solve the problem.
                                  There is not solution that go by attempts all the times for each point?

                                  1 Reply Last reply Reply Quote 0
                                  • dc42undefined
                                    dc42 administrators
                                    last edited by dc42

                                    There was a bug in the firmware whereby H parameters on G30 commands were ignored if deployprobe.g and retractprobe.g files were used, for example for BLTouch. This has been fixed in firmware 2.02RC5.

                                    Duet WiFi hardware designer and firmware engineer
                                    Please do not ask me for Duet support via PM or email, use the forum
                                    http://www.escher3d.com, https://miscsolutions.wordpress.com

                                    1 Reply Last reply Reply Quote 0
                                    • giostarkundefined
                                      giostark
                                      last edited by

                                      I ordered the extension volcano for the original D3D hotend. Both should arrive in this week .
                                      I'll restart the calibration process after I assembled the new components. Don't want do the work twice. I bought also some copper nozzle. Ole!

                                      1 Reply Last reply Reply Quote 0
                                      • giostarkundefined
                                        giostark
                                        last edited by giostark

                                        Dear absoluT...
                                        I got it....
                                        I made some further change at the setup I'll explain in an other post but some summing here:
                                        -D3D original hotend + volcano extension as the original TLM. + copper nozzle (nickel coated)
                                        -Changed belts with ones iron cored.
                                        -Cartridge modified for a far better precision (with Teflon thickness + bi-adessive scotch) .
                                        -Borosilicate custom made glass (x2) 41,5cmX5mm + 3 auto-build support for block the glass.
                                        -The damn white glue really work! Moisture of 2/5 glue-water , I used just a sponge for apply it. Than the bed at 50 degree. The big piece doesn't move from the glass!

                                        Thanks to any one for the support...for sure I'll ask other stuffs...but right now I'll give back my contribution opening a new thread with my accomplishments.
                                        I'll mark as solved the 3d.

                                        1 Reply Last reply Reply Quote 0
                                        • RafBundefined
                                          RafB
                                          last edited by

                                          Hello,

                                          I also have a Tevo Little Monster and I would like some help to understand what I badly parameterized to have this form of card in comparison to that of giostark.
                                          I enclose you bed.g and config.g!
                                          Thanks

                                          0_1549405026893_Capture d’écran 2019-02-05 à 23.13.29.png

                                          0_1549405189432_Capture d’écran 2019-02-05 à 23.19.30.png

                                          bed.g
                                          0_1549405330644_bed.g

                                          config.g
                                          0_1549405365128_config.g

                                          1 Reply Last reply Reply Quote 0
                                          • dc42undefined
                                            dc42 administrators
                                            last edited by

                                            That height map looks very good to me. Is there a problem?

                                            Duet WiFi hardware designer and firmware engineer
                                            Please do not ask me for Duet support via PM or email, use the forum
                                            http://www.escher3d.com, https://miscsolutions.wordpress.com

                                            1 Reply Last reply Reply Quote 0
                                            • First post
                                              Last post
                                            Unless otherwise noted, all forum content is licensed under CC-BY-SA
